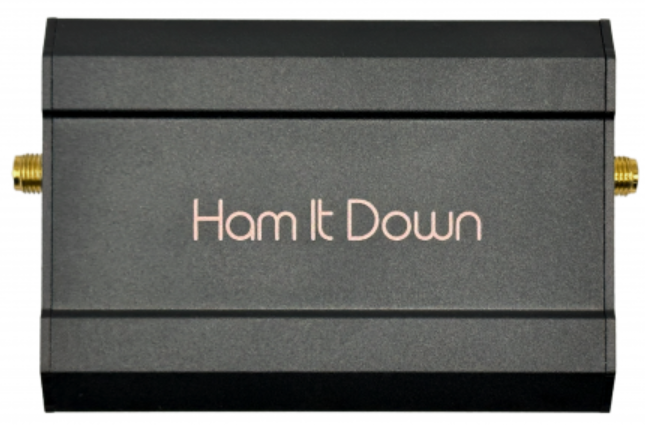

Ham It Down Downconverter

The Ham It Down is a high-performance downconverter. It is able to convert
signals from 1.55 GHz to 3.1GHz into the frequency range of SDR.

How do I set up the Ham It Down with my NESDR?

We recommend setting up your SDR first, using our Installation Guide: “Getting Started with NESDR”. Once you have the SDR working as expected, you can then connect the Ham It Down.

Set-up instructions:

• Connect your antenna to the Ham It Down Input;
• Connect your SMA male to SMA male adapter to your SDR;
• Install your SDR/ adapter to your Ham It Down Output;
• If externally powering your Ham It Down, plug your USB power source into the USB jack. If using bias tee power, the Ham It Down will require 200-220mA of current from the SDR. (Warning: do not power your Ham It Down with more than one power source at a given time)

• Fire up your favorite SDR software, adjust the tuning offset to (+)1.5 GHz and tune to your desired frequency. Alternatively, you can tune to your frequency of interest minus 1.5 GHz. Enjoy!



⚠ User Safety

• Only power the Ham It Down with one power option at any given time; bias tee or USB
• The Ham It Down will require 200-220mA of DC current to operate
• Ensure voltage input does not exceed 5.5 V
• The maximum recommended input power is 10 dBm
• This device is not weatherproof. Weatherproofing precautions should be taken if installing outdoors

• Contains small parts not suitable for young children



Includes:

• Ham It Down
• 1 pc male SMA to male SMA adapter
• 1pc Micro USB male to DC barrel connector female
• Silicone feet
